PostgreSQL, MySQL, MS SQL, BigQuery, Snowflake, Redshift, Oracle, DuckDB

In this quick start guide, we will write our first script in SQL. We will see how to connect a Windmill instance to an external SQL service and then send queries to the database using Windmill Scripts.

Windmill & PostgreSQL, MySQL, BigQuery and Snowflake

This tutorial covers how to create a simple script through Windmill web IDE. See the dedicated page to develop scripts locally.

Local development
Develop from various environments such as your terminal, VS Code, and JetBrains IDEs.

Windmill supports PostgreSQL, MySQL, Microsoft SQL Server, BigQuery and Snowflake. In any case, it requires creating a dedicated resource.

Although all users can use BigQuery, Snowflake and MS SQL through resources and community-available languages (TypeScript, Python, Go, Bash etc.), only instances under Enterprise edition and cloud workspaces can use BigQuery, Snowflake, Oralce DB and MS SQL runtimes as a dedicated language.

Create resource​

Windmill provides integrations with many different apps and services with the use of Resources. Resources are rich objects in JSON that allow to store configuration and credentials.

Each Resource has a Resource Type (PostgreSQL, MySQL, MS SQL, BigQuery, Snowflake) that defines the schema that the resource of this type needs to implement. Schemas implement the JSON Schema specification.

Resources and resource types
Resources are structured configurations and connections to third-party systems, with Resource types defining the schema for each Resource.
tip

You can find a list of all the officially supported Resource types on Windmill Hub.

tip

You can pin a resource to an SQL query by adding a -- database resource_path line to your script. The query will automatically use the resource without having to specify it in the autogenerated user interface.

PostgreSQL​

To be able to connect to a PostgreSQL instance (Supabase, Neon.tech, etc.), we'll need to define a Resource with the PostgreSQL Resource Type first.

Head to the Resources page, click on "Add resource" in the top right corner and select the PostgreSQL type.

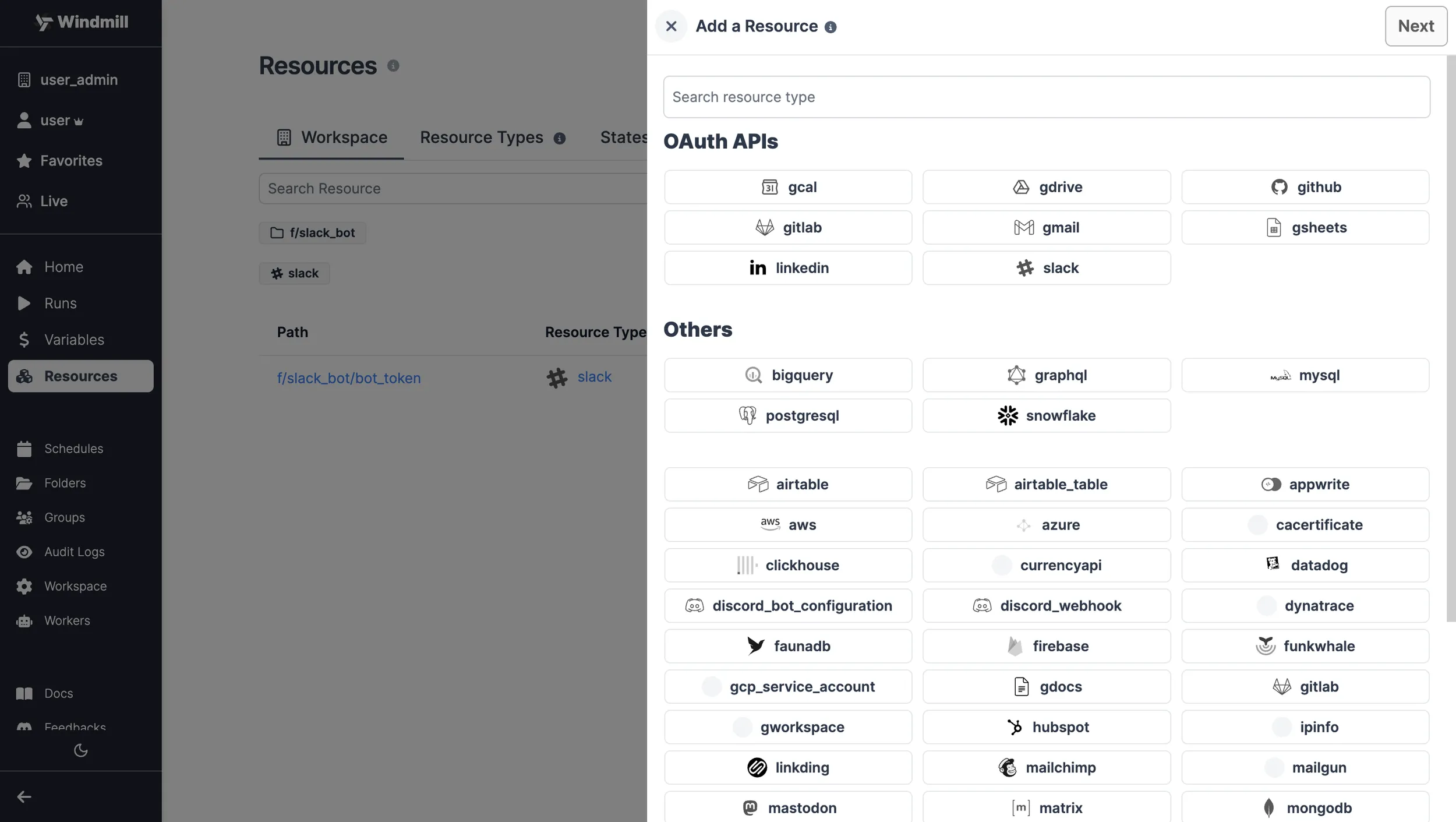

Select PostgreSQL Resource Type

Fill out the form with the information of your PostgreSQL instance and "Test connection" if needed.

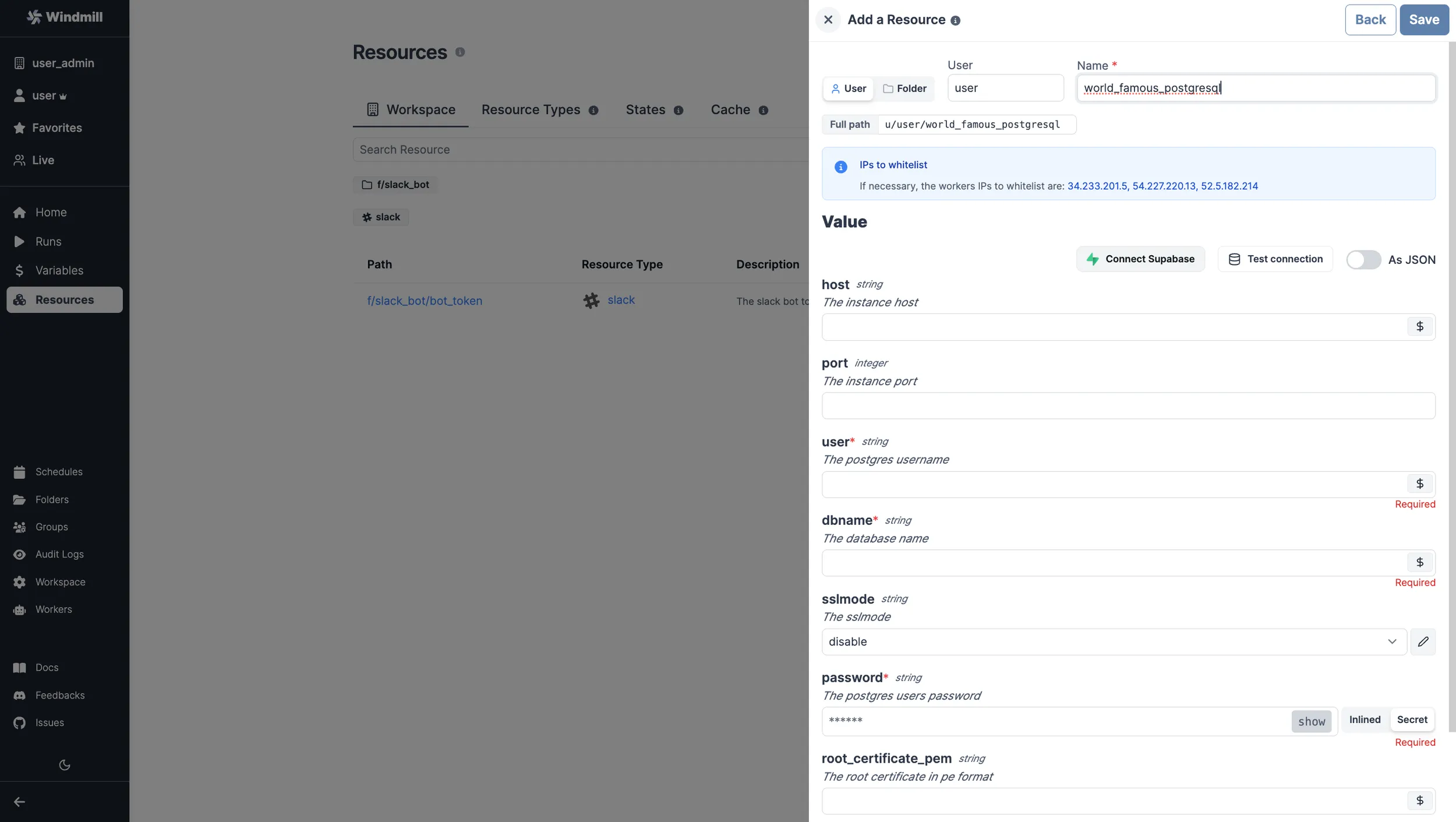

Paste in Resource Values

tip

For testing purposes, you can use the sample PostgreSQL Resource provided to every user. It is available under the path f/examples/demo_windmillshowcases.

PostgreSQL: Add a Supabase database​

Windmill provides a wizard to easily add a Supabase database through PostgreSQL.


When creating a new PostgreSQL resource, just "Add a Supabase DB". This will lead you to a Supabase page where you need to pick your organization. Then on Windmill pick a database, fill with database password and that's it.

Use SQL to build on external APIs using Sequin​

With Sequin, developers can build on top of third-party services like Salesforce or HubSpot using SQL. More details at:

Use SQL to build on external APIs using Sequin
With Sequin, developers can build on top of third-party services like Salesforce or HubSpot using SQL.

MySQL​

To be able to connect to a MySQL instance, we'll need to define a Resource with the MySQL Resource Type first.

Head to the Resources page, click on "Add resource" in the top right corner and select the MySQL type.

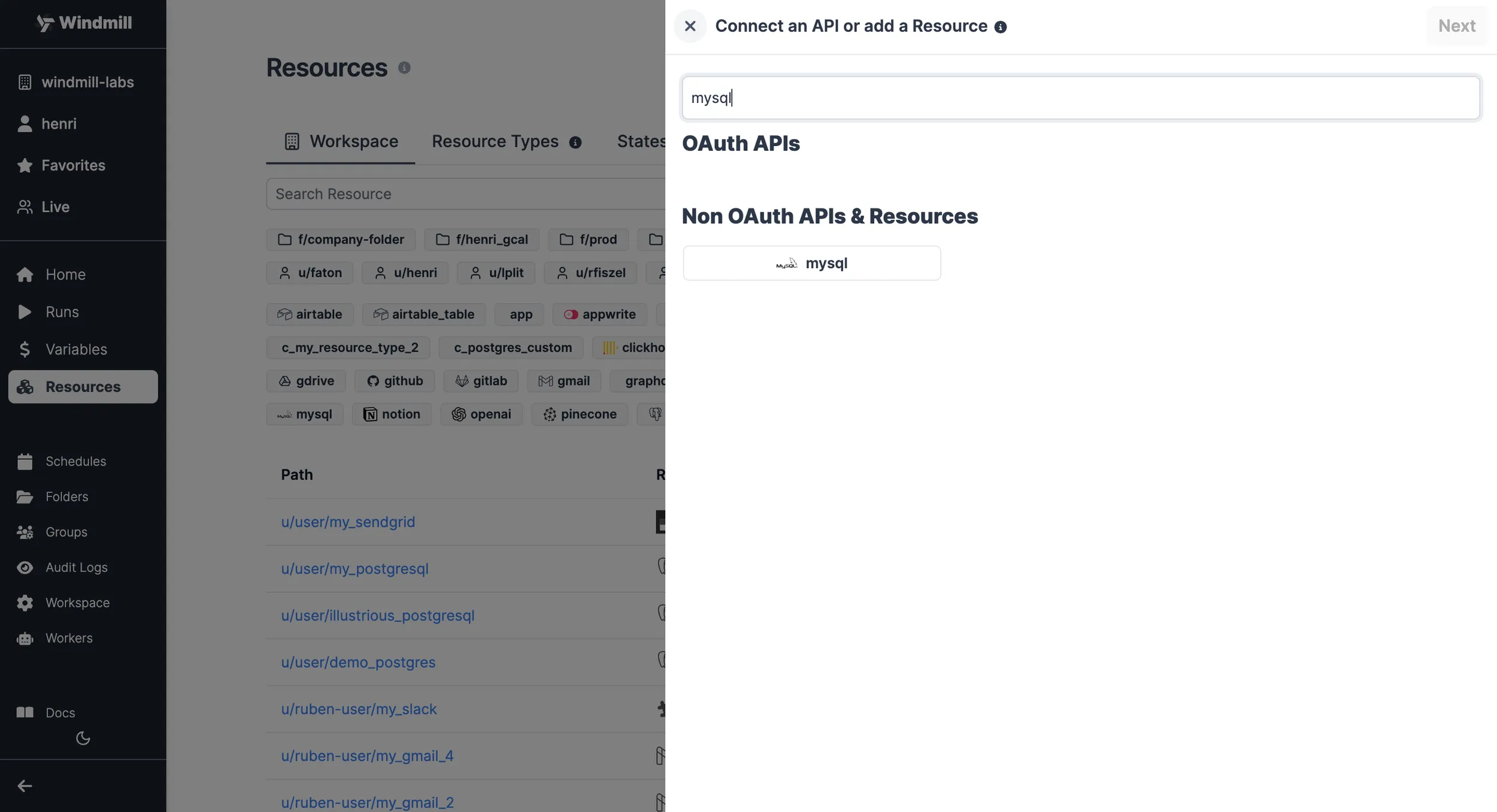

Select MySQL Resource Type

Fill out the form with the information of your MySQL instance and "Test connection" if needed.

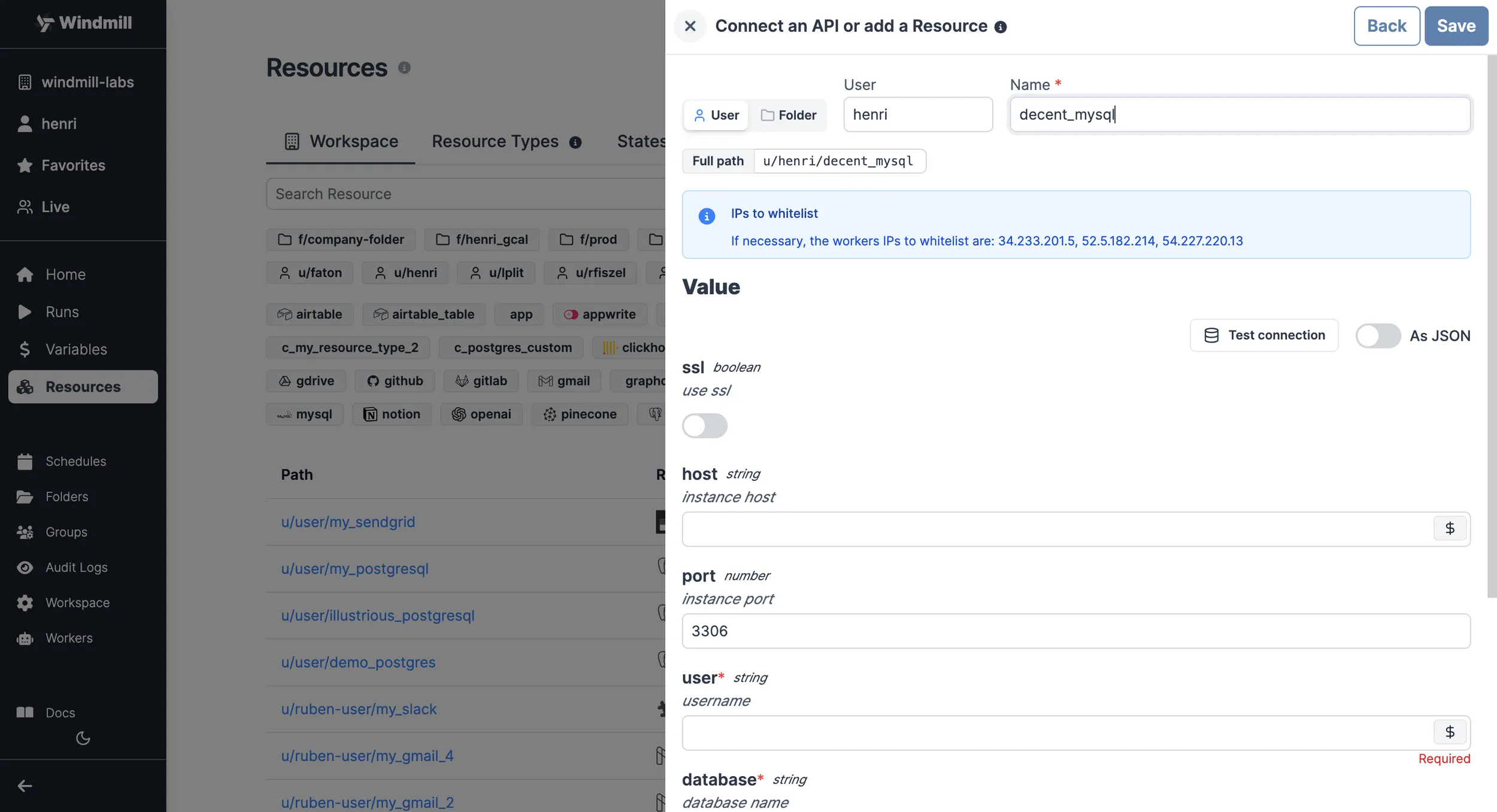

Paste in Resource Values

PropertyTypeDescriptionDefaultRequiredWhere to Find
hoststringInstance hostfalseYour hosting provider's control panel or in your server's MySQL configuration file
portnumberInstance port3306falseYour hosting provider's control panel or in your server's MySQL configuration file
userstringUsernametrueCreated in MySQL (e.g., via phpMyAdmin or MySQL Workbench) or provided by your hosting
databasestringDatabase nametrueCreated in MySQL (e.g., via phpMyAdmin or MySQL Workbench) or provided by your hosting
passwordstringUser's passwordtrueCreated in MySQL (e.g., via phpMyAdmin or MySQL Workbench) or provided by your hosting

MS SQL​

To be able to connect to a Microsoft SQL Server instance, we'll need to define a Resource with the ms_sql_server Resource Type first.

Head to the Resources page, click on "Add resource" in the top right corner and select the ms_sql_server type.

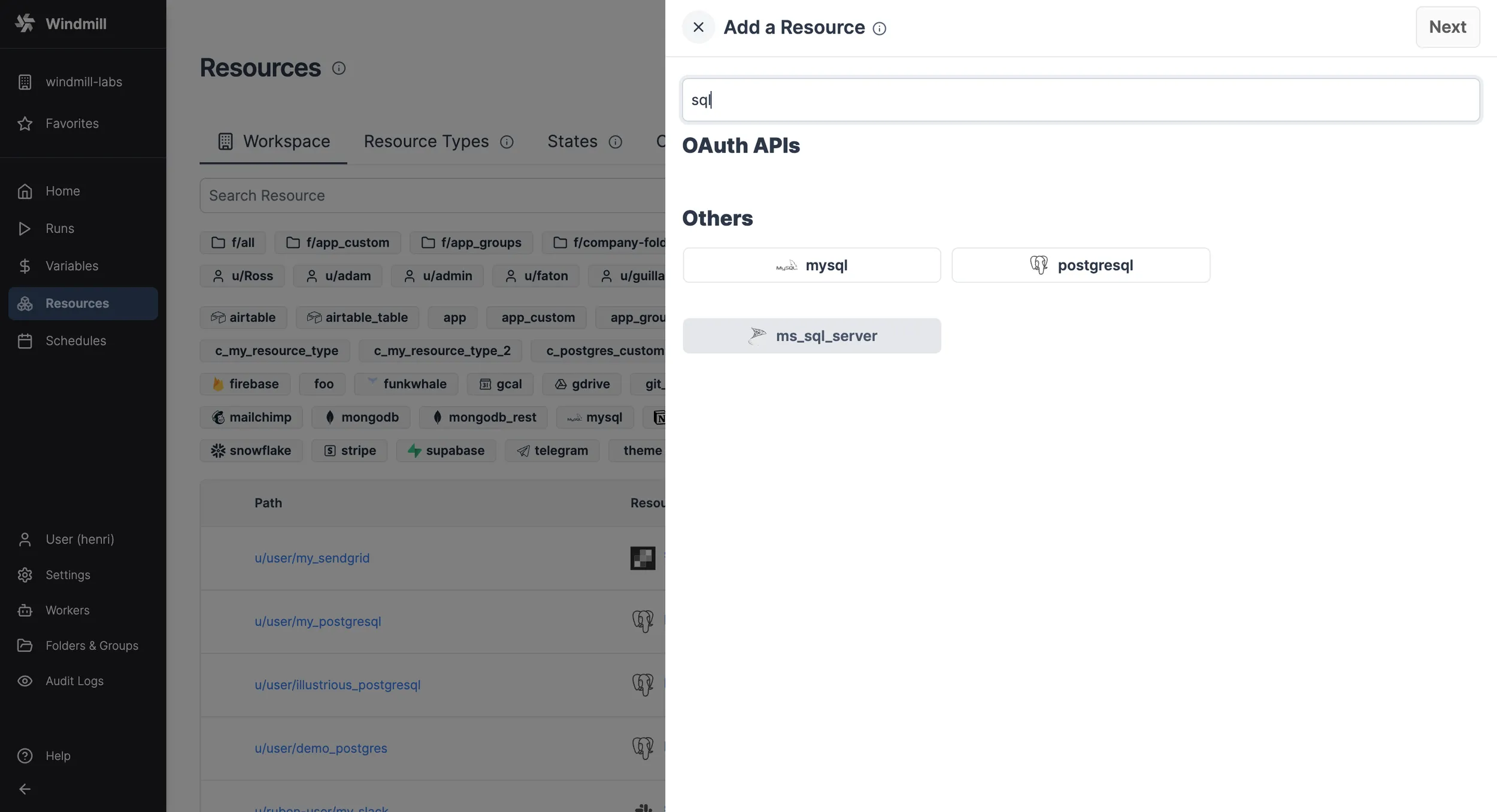

Select MySQL Resource Type

Fill out the form with the information of your MS SQL instance and "Test connection" if needed.

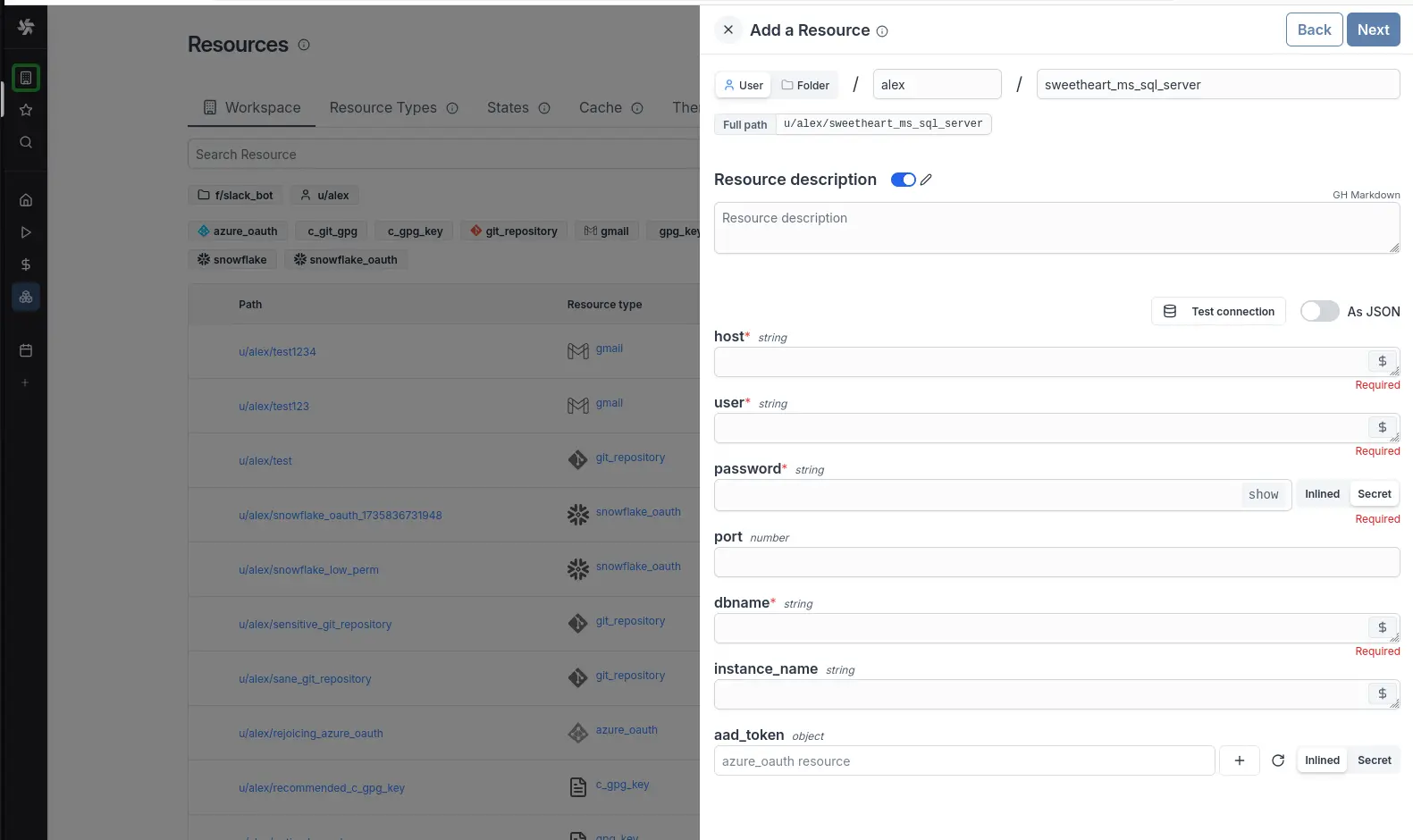

Paste in Resource Values

PropertyTypeDescriptionDefaultRequiredWhere to Find
hoststringInstance hosttrueYour hosting provider's control panel or in your server's MS SQL configuration file
portnumberInstance portfalseYour hosting provider's control panel or in your server's MS SQL configuration file
userstringUsernamefalseCreated in MS SQL (e.g., via SQL Server Management Studio) or provided by your hosting
dbnamestringDatabase nametrueCreated in MS SQL (e.g., via SQL Server Management Studio) or provided by your hosting
passwordstringUser's passwordfalseCreated in MS SQL (e.g., via SQL Server Management Studio) or provided by your hosting
integrated_authboolUse Windows Integrated AuthenticationfalsefalseEnable to use the worker's Kerberos credentials instead of username/password
aad_tokenobjectOAuth token ADfalseRequires OAuth setup in Windmill
instance_namestringNamed instancefalseFor named SQL Server instances (e.g., MSSQLSERVER)
encryptboolEnable TLS encryptiontruefalseSet to false only for local development
trust_certboolTrust server certificatetruefalseIf true, the server certificate will be trusted even if it is not signed by a trusted authority
ca_certstringCA certificatefalseCA certificate to verify the server certificate. More information on MS SQL certificates

Authentication methods​

MS SQL Server supports three authentication methods:

  1. Username/Password: Provide user and password fields.
  2. Azure AD (Entra): Use the aad_token field with OAuth.
  3. Windows Integrated Authentication (Kerberos): Enable integrated_auth.

Windows Integrated Authentication​

For enterprise environments using Active Directory, enable integrated_auth to use Kerberos authentication. When enabled, the worker's service account credentials are used instead of username/password.

Requirements:

  • The worker must have a valid Kerberos ticket (e.g., via kinit or a keytab)
  • The worker must have access to a valid /etc/krb5.conf with the correct realm configuration
  • The service account must have permissions on the target database

Docker/Kubernetes setup:

  1. Mount a keytab file to the worker container
  2. Configure /etc/krb5.conf with your realm settings
  3. Optionally run kinit at container startup or use KRB5_KTNAME environment variable

To specify the application intent for read-only requests, add -- ApplicationIntent=ReadOnly to the script.

Azure AD (Entra)

When using domain credentials via Entra (Azure Active Directory) you need to add the scope https://database.windows.net//.default to the Windmill OAuth instance setting.

BigQuery​

To be able to connect to a BigQuery instance, we'll need to define a Resource with the BigQuery Resource Type first.

Head to the Resources page, click on "Add resource" in the top right corner and select the BigQuery type.

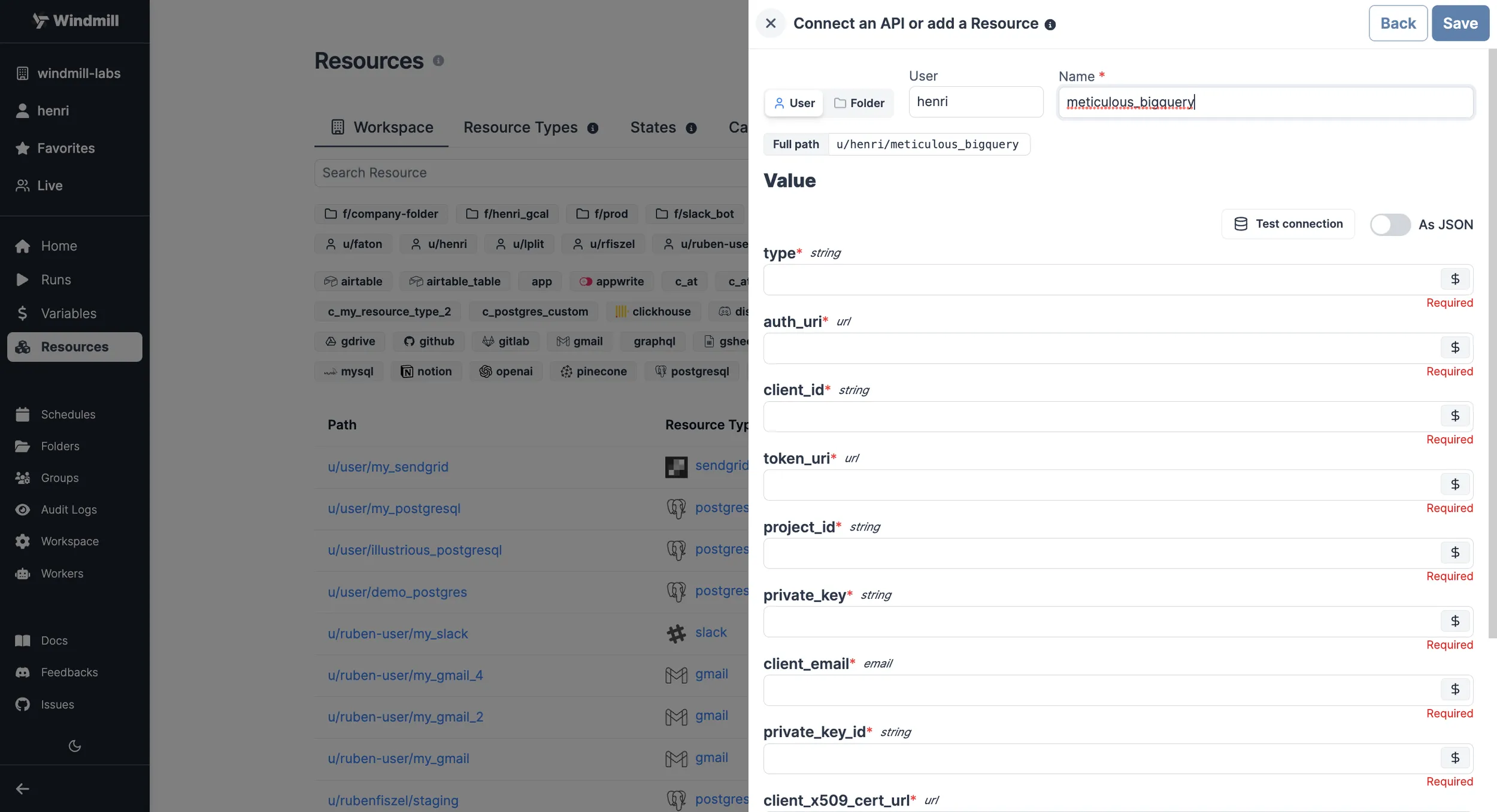

Select BigQuery Resource Type

PropertyTypeDescriptionRequired
auth_provider_x509_cert_urlstringAuth provider X.509 certificate URL.false
client_x509_cert_urlstringClient X.509 certificate URL.false
private_key_idstringID of the private key used for authentication.false
client_emailstringEmail associated with the service account.false
private_keystringPrivate key used for authentication.false
project_idstringGoogle Cloud project ID.true
token_uristringOAuth 2.0 token URI.false
client_idstringClient ID used for OAuth 2.0 authentication.false
auth_uristringOAuth 2.0 authorization URI.false
typestringType of the authentication method.false

Here's a step-by-step guide on where to find each detail.

  1. Service account creation:

    • Go to the Google Cloud Console.
    • Select the appropriate project from the top menu.
    • In the left navigation pane, go to "IAM & Admin" > "Service accounts".
    • Click on the "+ CREATE SERVICE ACCOUNT" button.
    • Provide a name and optional description for the service account.
    • Click "Create".

  2. Assign roles:

    • After creating the service account, you'll be prompted to grant roles to it. Select "BigQuery" roles such as "BigQuery Admin" or "BigQuery Data Editor" based on your needs.
    • Click "Continue" and "Done" to create the service account.

  3. Generate key:

    • In the "Service accounts" section, find the newly created service account in the list.
    • Click on the three dots on the right and select "Manage keys", then "Add Key".
    • Choose the key type as "JSON" and click "Create".

  4. Properties Details:

    Once you've generated the key, the downloaded JSON file will contain all the required properties.


You can directly "Test connection" if needed.

Snowflake​

To be able to connect to Snowflake, you can choose to either setup OAuth for Snowflake or by defining a Snowflake Resource.

If a Snowflake OAuth connection is present, you can create a new Resource by heading to Resources, clicking on "Add Resource" in the top right corner and selecting snowflake_oauth. Take a look at this guide to learn more about how to build an App with Snowflake OAuth integration.

If you do not wish to use OAuth, click on "Add Resource" in the top right corner and select the Snowflake type instead.

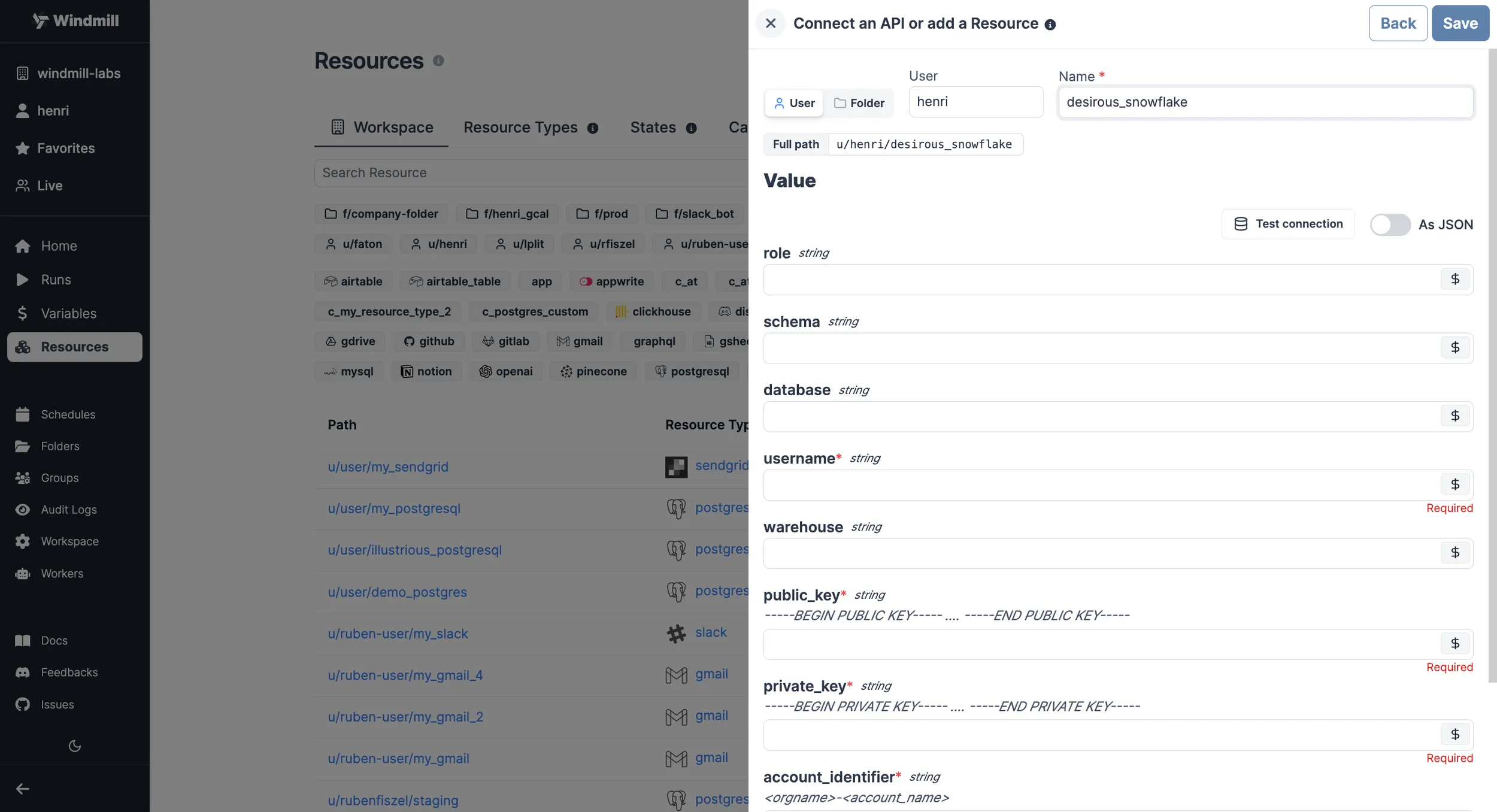

Select Snowflake Resource Type

PropertyTypeDescriptionRequired
account_identifierstringSnowflake account identifier in the format <orgname>-<account_name>.true
private_keystringPrivate key used for authentication.true
public_keystringPublic key used for authentication.true
warehousestringSnowflake warehouse to be used for queries.false
usernamestringUsername for Snowflake login.true
databasestringName of the Snowflake database to connect to.true
schemastringSchema within the Snowflake database.false
rolestringRole to be assumed upon connection.false

Here's a step-by-step guide on where to find each detail.

  1. Account identifier:

    The account identifier typically follows the format: <orgname>-<account_name>. You can find it in the Snowflake web interface:

    • Log in to your Snowflake account.
    • The account identifier can often be found in the URL or at the top of the Snowflake interface after you log in (in the format https://app.snowflake.com/orgname/account_name/).

    Snowflake Documentation on Account Identifier

  2. Username:

    The username is the Snowflake user you will use to connect to the database. You will need to create a user if you don't have one:

    • In the Snowflake web interface, go to the "ACCOUNT" tab.
    • Select "Users" from the left navigation pane.
    • Click the "+ CREATE USER" button to create a new user with a username and password.

  3. Public key and private key:

    To create the public and private keys, you will need to generate them using a tool like OpenSSL:

    • Open a terminal window.
    • Use OpenSSL to generate a public and private key pair. The exact commands may vary based on your operating system.
    • For example, to generate a public key: openssl rsa -pubout -in private_key.pem -out public_key.pem

    Once you have the keys, you can copy the content and paste them into the respective fields in your configuration.

    Snowflake Documentation on Key Pair Authentication & Key Pair Rotation

  4. Warehouse, schema, database, and role:

    These parameters are specific to your Snowflake environment and will depend on how your Snowflake instance is configured:

    • warehouse: The name of the Snowflake warehouse you want to connect to.
    • schema: The name of the Snowflake schema you want to use.
    • database: The name of the Snowflake database you want to connect to.
    • role: The role you want to use for authentication.

    You can find these details in the Snowflake web interface:

    • Log in to your Snowflake account.
    • You can find the names of warehouses, schemas, databases, and roles in the interface or by running SQL queries.

You can directly "Test connection" if needed.

Amazon Redshift​

To connect to an Amazon Redshift instance, we need to add the corresponding resource. Redshift is compatible with Windmill's PostgreSQL resources and scripts, so we'll start by adding a new PostgrSQL resource type.

Select PostgreSQL Resource Type

Get the required values from the AWS console under CLUSTERS > your Redshift cluster.

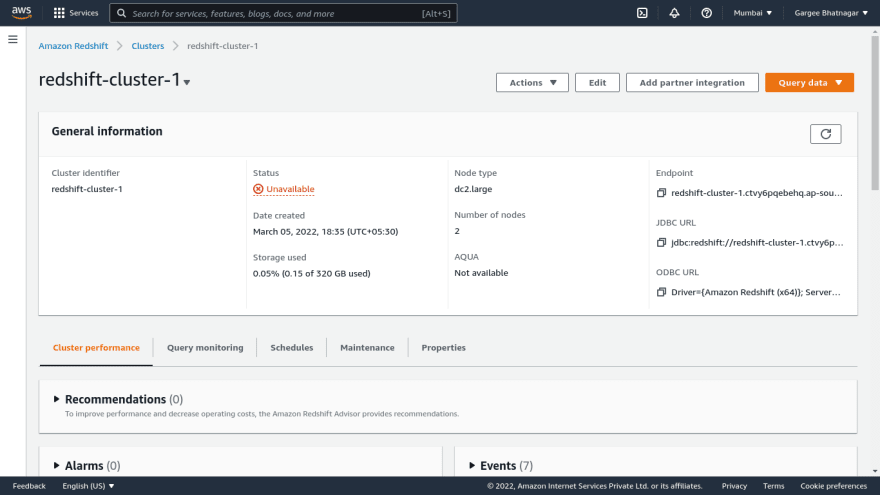

AWS Redshift Cluster Screen

Find the value named 'endpoint' it should look like this:

default-workgroup.475893240789.us-east-1.redshift-serverless.amazonaws.com:5439/dev

From there you can deduce your host, port and database name:

  • host: default-workgroup.475893240789.us-east-1.redshift-serverless.amazonaws.com
  • port: 5439
  • dbname: dev

Now you can fill those values in Windmill, fill also the user and password for the db and press "Test connection" to check that it's working.

Fill in the required values

Once it's working press save and you have succesfully added your Redshift instance as a PostgreSQL resource!

Oracle​

To be able to connect to an Oracle database, you need to define an Oracle resource.

Head to the Resources page, click on "Add resource" in the top right corner and select the Oracle type.

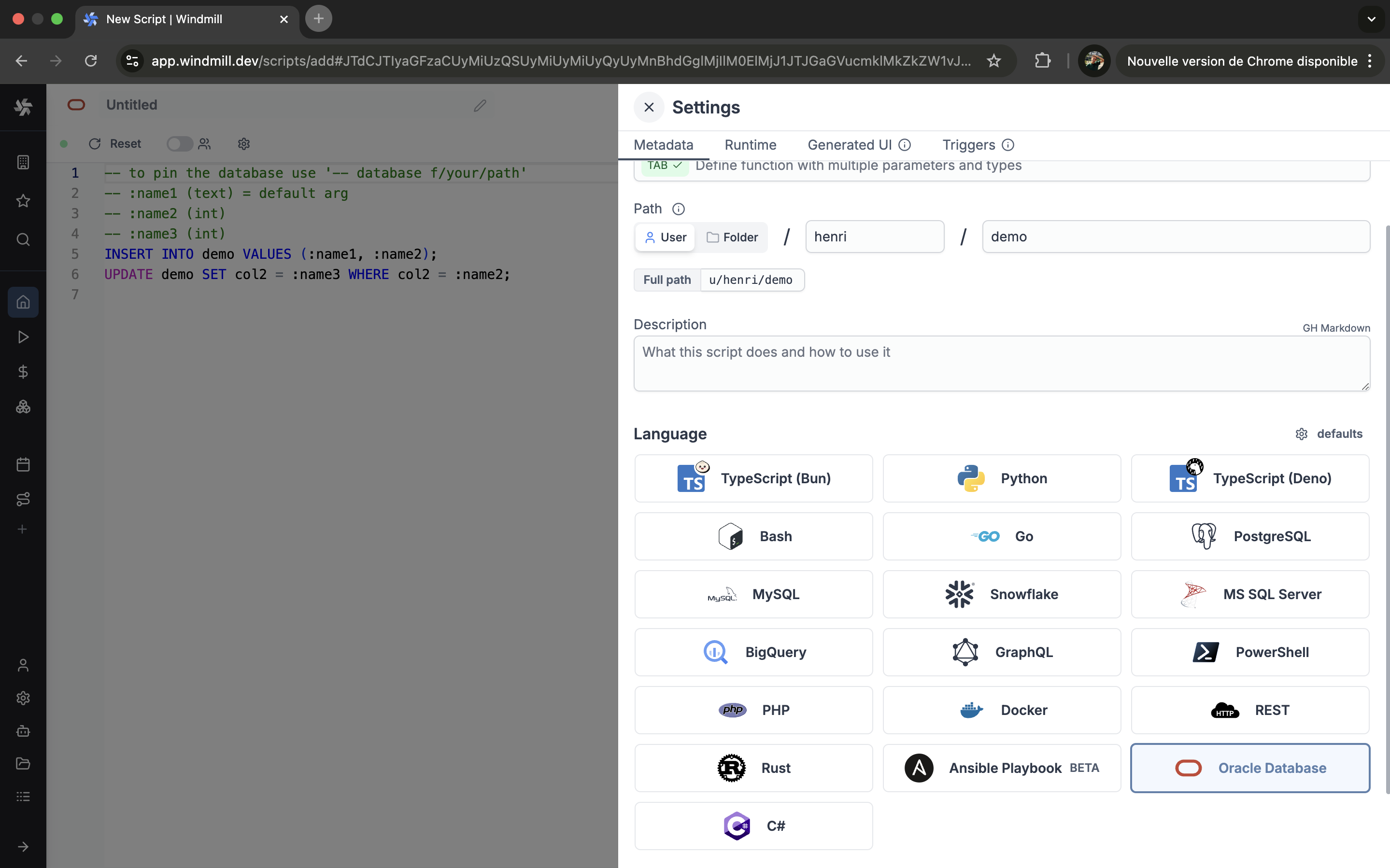

Select Oracle Resource Type

PropertyTypeDescriptionRequired
databasestringDatabase nametrue
userstringUsernametrue
passwordstringUser's passwordtrue

Here's a step-by-step guide on where to find each detail.

  1. Database: The name of the Oracle database you want to connect to. This can be found in your Oracle database configuration or by consulting your database administrator.

  2. Username: The username for Oracle login. You will need to create a user if you don't have one:

    • In the Oracle database interface, go to the "Users" section.
    • Create a new user with a username and password.

  3. Password: The password associated with the Oracle username.

You can directly "Test connection" if needed.

DuckDB​

DuckDB scripts run in-memory out-of-the-box.

Create script​

Next, let's create a script that will use the newly created Resource. From the Home page, click on the "+Script" button. Name the Script, give it a summary, and select your preferred language, PostgreSQL, MySQL, MS SQL, BigQuery, Snowflake.

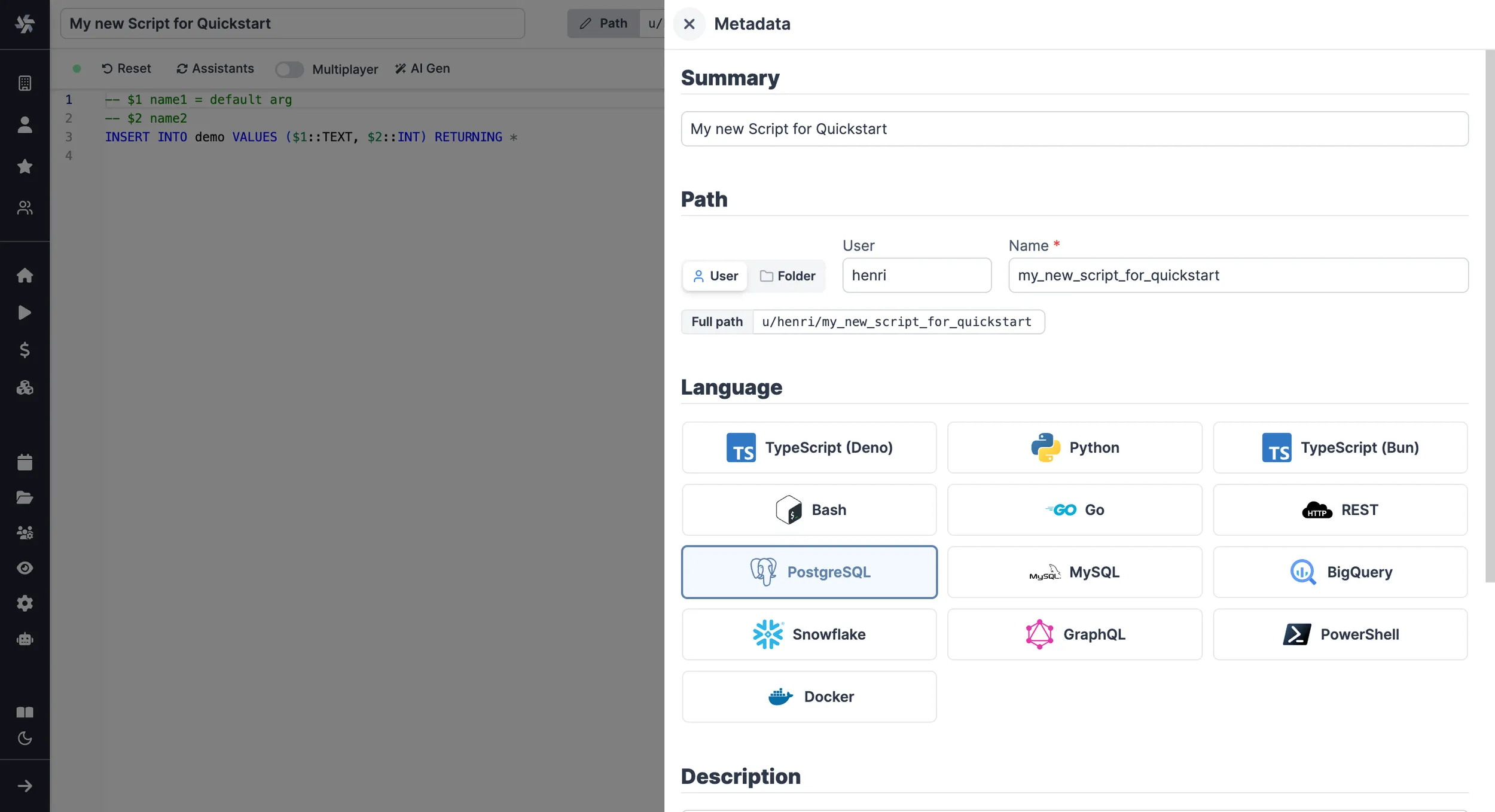

Script creation first step

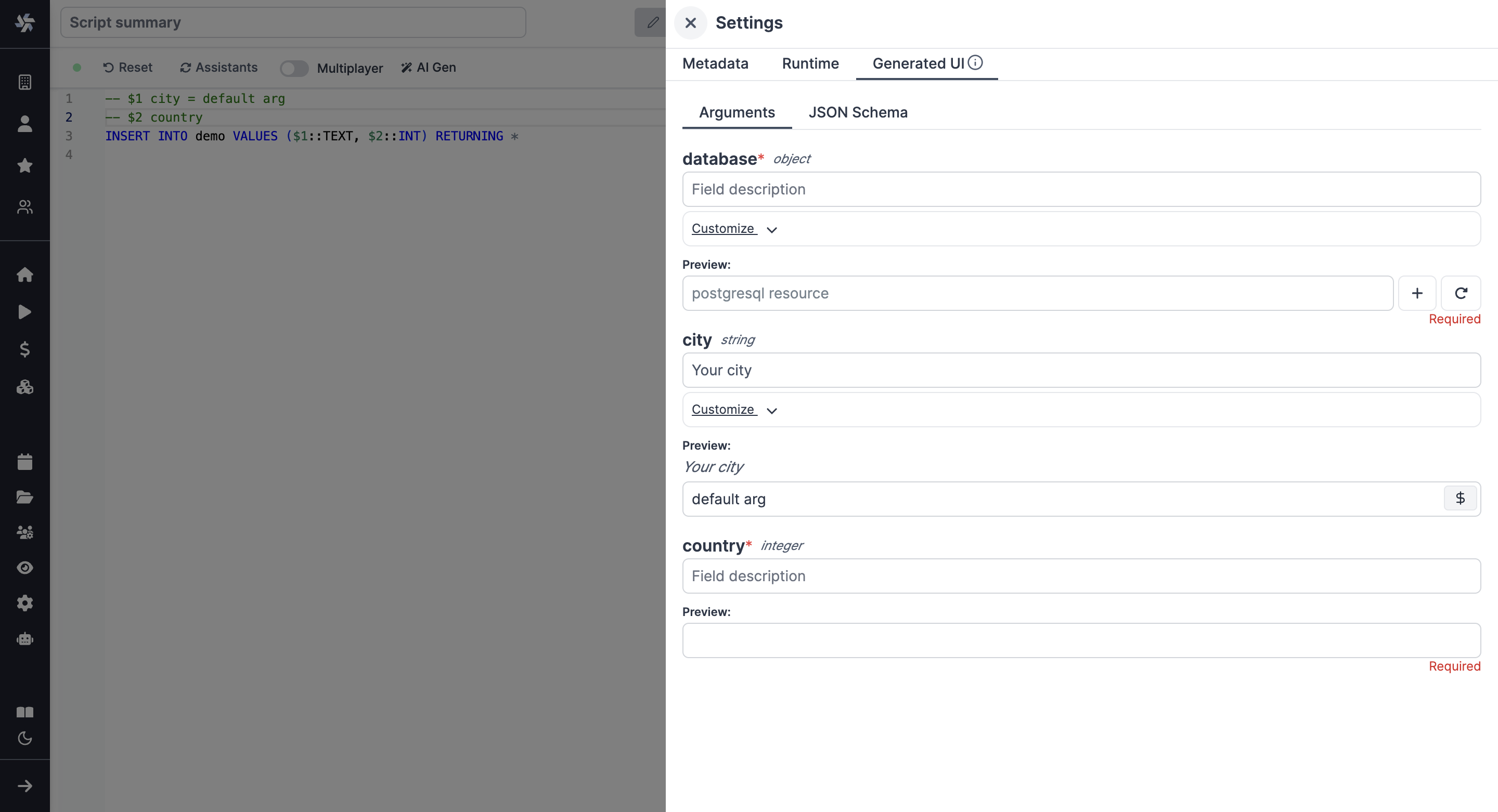

You can also give more details to your script, in the settings section, you can also get back to that later at any point.

PostgreSQL​

Arguments need to be passed in the given format:

-- $1 name1 = default arg
-- $2 name2
INSERT INTO demo VALUES ($1::TEXT, $2::INT) RETURNING *

"name1", "name2" being the names of the arguments, and "default arg" the optional default value.

Database resource can be specified from the UI or directly within script with a line -- database resource_path.


You can then write your prepared statement.

MySQL​

Arguments need to be passed in the given format:

-- :name1 (text) = default arg
-- :name2 (int)
INSERT INTO demo VALUES (:name1, :name2)

"name1", "name2" being the names of the arguments, and "default arg" the optional default value.

Database resource can be specified from the UI or directly within script with a line -- database resource_path.


You can then write your prepared statement.

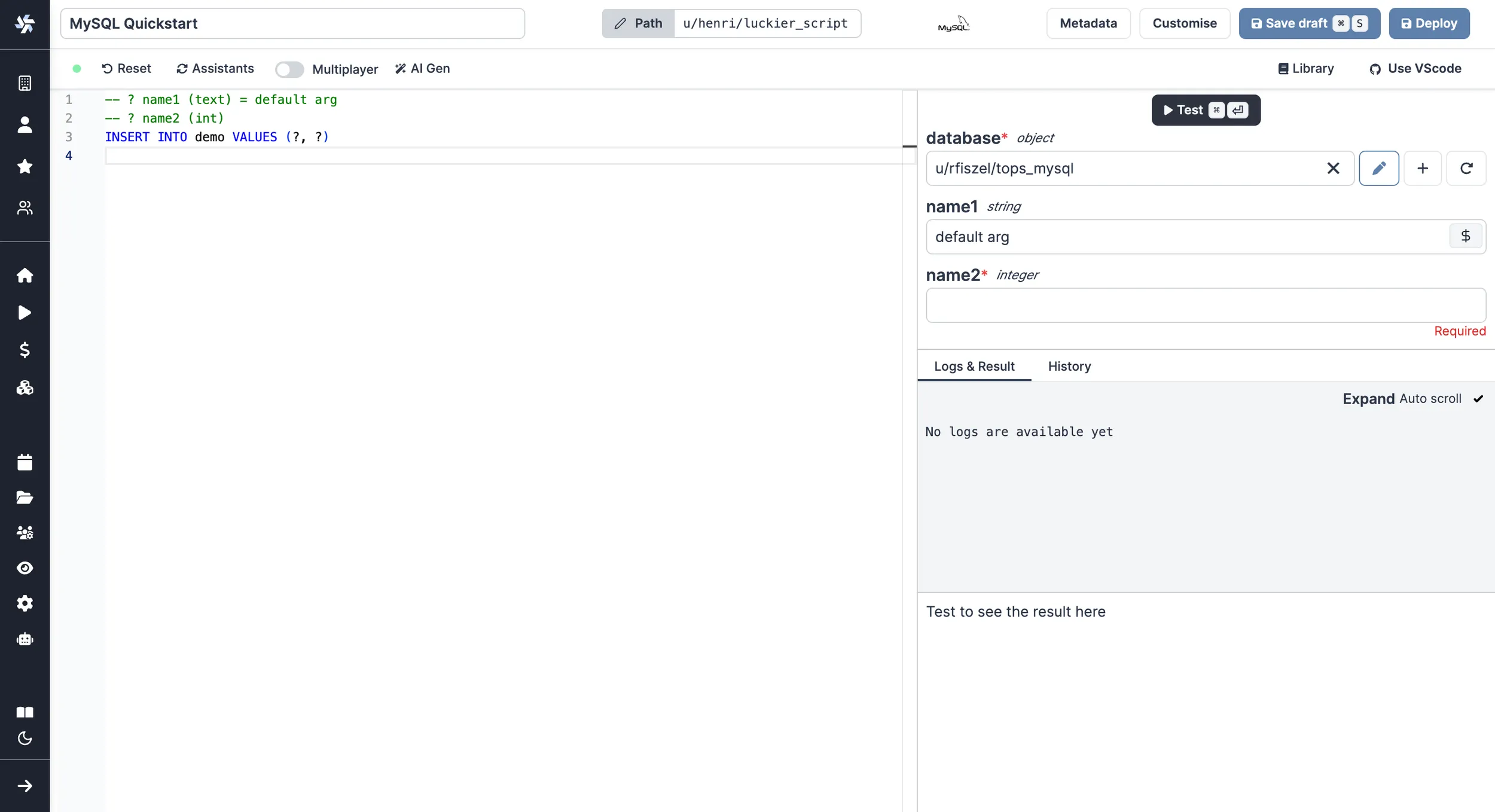

Mysql statement

MS SQL​

Arguments need to be passed in the given format:

-- @P1 name1 (varchar) = default arg
-- @P2 name2 (int)
INSERT INTO demo VALUES (@P1, @P2)

"name1", "name2" being the names of the arguments, and "default arg" the optional default value.

Database resource can be specified from the UI or directly within script with a line -- database resource_path.


You can then write your prepared statement.

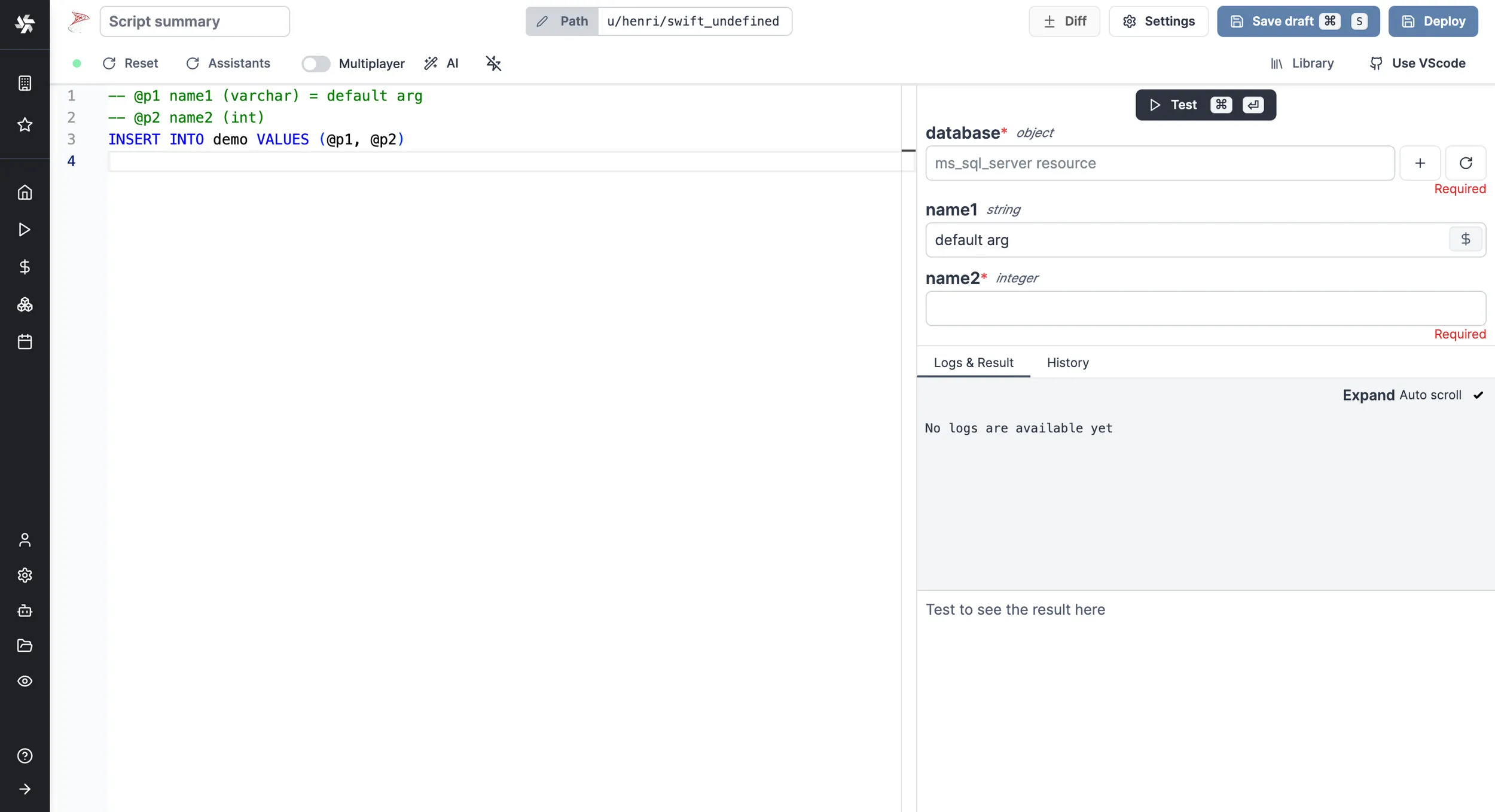

Mysql statement

BigQuery​

Arguments need to be passed in the given format:

-- @name1 (string) = default arg
-- @name2 (integer)
-- @name3 (string[])
INSERT INTO `demodb.demo` VALUES (@name1, @name2, @name3)

"name1", "name2", "name3" being the names of the arguments, "default arg" the optional default value and string, integer and string[] the types.

Database resource can be specified from the UI or directly within script with a line -- database resource_path.


You can then write your prepared statement.

Snowflake​

Arguments need to be passed in the given format:

-- ? name1 (varchar) = default arg
-- ? name2 (int)
INSERT INTO demo VALUES (?, ?)

"name1", "name2" being the names of the arguments, "default arg" the optional default value and varchar & int the types.

Database resource can be specified from the UI or directly within script with a line -- database resource_path.


You can then write your prepared statement.

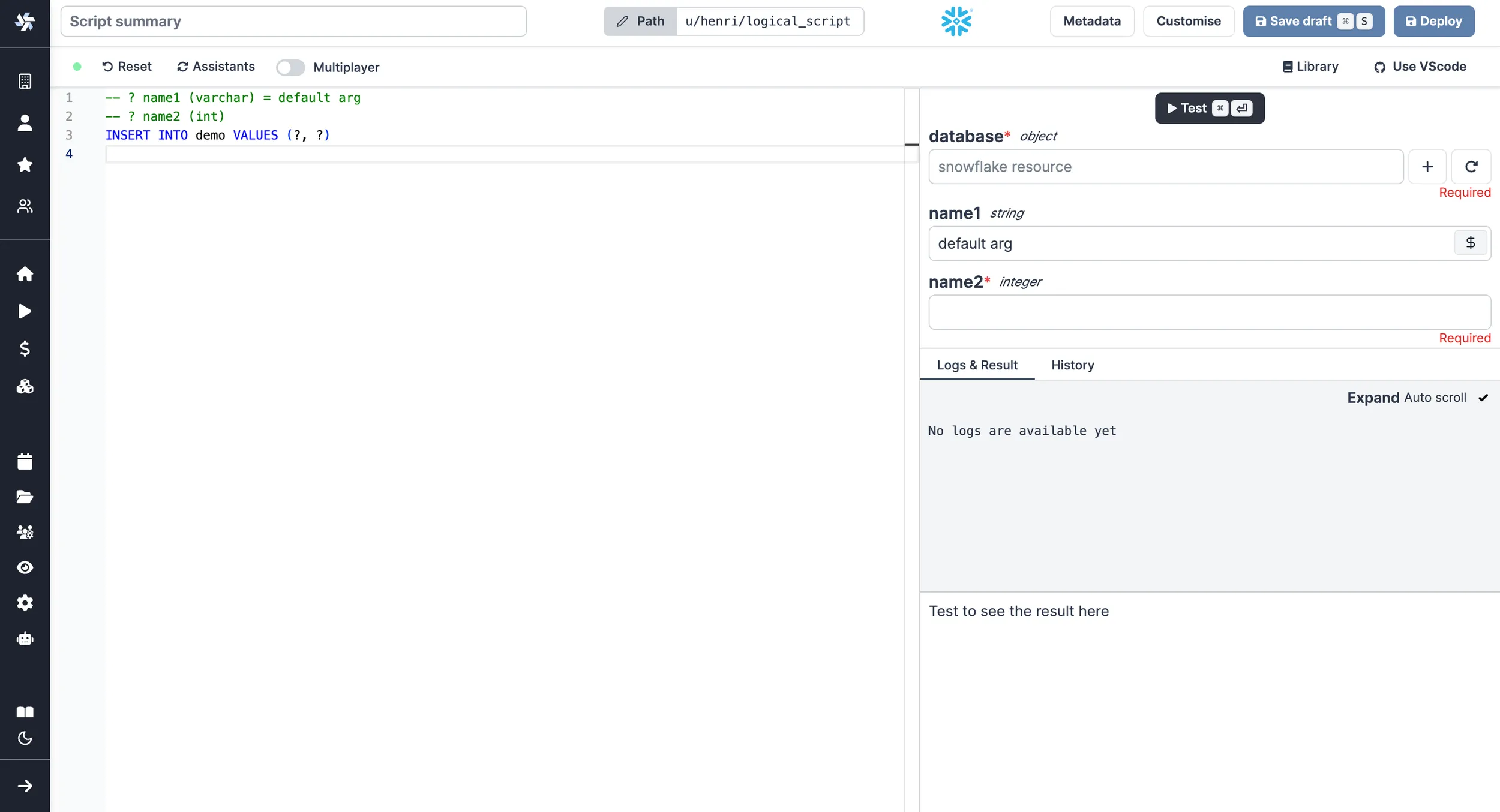

Snowflake statement

Amazon Redshift​

Since Redshift is compatible with Windmill's PostgreSQL, you can follow the same instructions as for PostgreSQL scripts. Make sure to select your Redshift instance as a resource.

Remeber when using a a Redshift resource, you should write valid Redshift, and not PostgreSQL. For example the RETURNING * syntax is not supported, so you may want to change the default script to something like:

-- $1 name1 = default arg
-- $2 name2
INSERT INTO demo VALUES ($1::TEXT, $2::INT)

Learn more about the differences here.

Oracle​

Arguments need to be passed in the given format:

-- database f/your/path
-- :name1 (text) = default arg
-- :name2 (int)
-- :name3 (int)
INSERT INTO demo VALUES (:name1, :name2);
UPDATE demo SET col2 = :name3 WHERE col2 = :name2;

"name1", "name2", "name3" being the names of the arguments, and "default arg" the optional default value.

DuckDB​

DuckDB arguments need to be passed in the given format:

-- $name1 (text) = default arg
-- $name2 (int)
INSERT INTO demo VALUES ($name1, $name2)

"name1", "name2" being the names of the arguments, and "default arg" the optional default value.

You can pass a file on S3 as an argument of type s3object. This will substitute it with the correct 's3:///...' path at runtime. You can then query this file using the standard read_csv/read_parquet/read_json functions :

-- $file (s3object)
SELECT * FROM read_parquet($file)

Alternatively, you can reference files on the workspace directly using s3:// notation.

For primary workspace storage:

SELECT * FROM read_parquet('s3:///path/to/file.parquet')

For secondary storage:

SELECT * FROM read_parquet('s3://<secondary_storage>/path/to/file.parquet')

This notation also works with glob patterns:

SELECT * FROM read_parquet('s3:///myfiles/*.parquet')

The s3:// notation now uses the Windmill S3 Proxy by default.

You can also attach to other database resources (BigQuery, PostgreSQL and MySQL). We use the official and community DuckDB extensions under the hood :

ATTACH '$res:u/demo/amazed_postgresql' AS db (TYPE postgres);
SELECT * FROM db.public.friends;

Database resource can be specified from the UI or directly within the script with a line -- database resource_path.


You can then write your prepared statement.

Result collection​

You can choose what the script will return with the result_collection directive :

Collection strategiesOutput
last_statement_all_rows (default)Array of records
last_statement_first_rowRecord
last_statement_all_rows_scalarArray of scalars
last_statement_first_row_scalarScalar
all_statements_all_rowsArray of array of records
all_statements_first_rowArray of records
all_statements_all_rows_scalarArray of array of scalars
all_statements_first_row_scalarArray of scalars
legacy (deprecated)Behavior before introduction of the flag

Examples:

-- result_collection=all_statements_first_row_scalar
SELECT 1;
SELECT 2;
SELECT 3;

-- Result: [1, 2, 3]
-- result_collection=last_statement_all_rows
INSERT INTO my_table VALUES ('a', 'b', 'c');
INSERT INTO my_table VALUES ('1', '2', '3');
SELECT * FROM my_table;
-- Result: [
--   { "col1": "a", "col2": "b", "col3": "c" },
--   { "col1": "1", "col2": "2", "col3": "3" }
-- ]
--

Contextual variables​

You can use contextual variables in your queries. They need to be wrapped in %% like this:

SELECT '%%WM_WORKSPACE%%'

Raw queries​

Safe interpolated arguments​

To allow more flexibility than with prepared statements, Windmill offers the possibility to do safe string interpolation in your queries thanks to backend schema validation. This allows you to use script parameters for elements you would usually not be able to, such as table or column names. In order to avoid SQL injections however, these parameters are checked at runtime and the job will fail if any of these rules is not followed:

  • The parameter is a non-empty string.
  • The characters are all either alphabetical (ASCII only), numeric, or an underscore (_). Meaning no whitespace or symbol is allowed.
  • The string does not start with a number.
  • If the parameter is an enum, it must be one of the defined variants.

These rules are strict enough to protect from any kind of unexpected injection, but lenient enough to have some powerful use cases. Let's look at an example:

-- :daily_minimum_calories (int)
-- %%table_name%% fruits/vegetables/cereals

SELECT name, calories FROM %%table_name%% WHERE calories > daily_minimum_calories

In this example the argument table_name is defined as a string that can be either "fruits", "vegetables" or "cereals", and the user of the script can then choose which table to query by setting this argument. If the user of the script tries to query a different table, the job will fail before making a connection to the DB, and thus protecting potentially sensitive data.

It the enum variants are ommited, the field is considered to be a regular string and only the other rules apply:

-- :daily_minimum_calories (int)
-- %%table_name%%

SELECT name, calories FROM %%table_name%% WHERE calories > daily_minimum_calories

Keep in mind that this means users of this script can try this query against all existant and non-existant tables of the database.

Unsafe interpolation on a REST script​

A more convenient but less secure option is to execute raw queries with a TypeScript, Deno or Python client. You can for instance do string interpolation to make the name of the table a parameter of your script: SELECT * FROM ${table}. However this is dangerous since the string is directly interpolated and this open the door for SQL injections. Use with care and only in trusted environment.

PostgreSQL​

import * as wmill from 'windmill-client';
import { Client } from 'pg';

// Define the resource type as specified
type Postgresql = {
  host: string,
  port: number,
  user: string,
  dbname: string,
  sslmode: string,
  password: string,
  root_certificate_pem: string
}

// The main function that will execute a query on a Postgresql database
export async function main(query = 'SELECT * FROM demo', pg_resource: Postgresql) {
  // Initialize the PostgreSQL client with SSL configuration disabled for strict certificate validation
  const client = new Client({
    host: pg_resource.host,
    port: pg_resource.port,
    user: pg_resource.user,
    password: pg_resource.password,
    database: pg_resource.dbname,
    ssl: pg_resource.ssl,
  });

  try {
    // Connect to the database
    await client.connect();

    // Execute the query
    const res = await client.query(query);

    // Close the connection
    await client.end();

    // Return the query result
    return res.rows;
  } catch (error) {
    console.error('Database query failed:', error);
    // Rethrow the error to handle it outside or log it appropriately
    throw error;
  }
}

View script on Windmill Hub.

tip

You can find more Script examples related to PostgreSQL on Windmill Hub.

MySQL​

The same logic goes for MySQL.

import { createConnection } from 'mysql';

// Define the Mysql resource type as specified
type Mysql = {
  ssl: boolean,
  host: string,
  port: number,
  user: string,
  database: string,
  password: string
}

// The main function that will execute a query on a Mysql resource
export async function main(mysqlResource: Mysql, query: string): Promise<any> {
  // Create a promise to handle the MySQL connection and query execution
  return new Promise((resolve, reject) => {
    // Create a connection to the MySQL database using the resource credentials
    const connection = createConnection({
      host: mysqlResource.host,
      port: mysqlResource.port,
      user: mysqlResource.user,
      password: mysqlResource.password,
      database: mysqlResource.database,
      ssl: mysqlResource.ssl
    });

    // Connect to the MySQL database
    connection.connect(err => {
      if (err) {
        reject(err);
        return;
      }

      // Execute the query provided as a parameter
      connection.query(query, (error, results) => {
        // Close the connection after the query execution
        connection.end();

        if (error) {
          reject(error);
        } else {
          resolve(results);
        }
      });
    });
  });
}

View script on Windmill Hub.

And so on for MS SQL, BigQuery and Snowflake.

Customize your script​

After you're done, click on "Deploy", which will save it to your workspace. You can now use this Script in your Flows, app or as standalone.

Feel free to customize your script's metadata (path, name, description), runtime (concurrency limits, worker group, cache, dedicated workers) and generated UI.

Customize SQL

Settings
Each script has metadata & settings associated with it, enabling it to be defined and configured in depth.
Generated UI
main function's arguments can be given advanced settings that will affect the inputs' auto-generated UI and JSON Schema.

What's next?​

Those scripts are minimal working examples, but there's a few more steps that can be useful in a real-world use case:

Scripts are immutable and there is a hash for each deployment of a given script. Scripts are never overwritten and referring to a script by path is referring to the latest deployed hash at that path.

Versioning
Scripts, when deployed, can have a parent script identified by its hash.

For each script, a UI is autogenerated from the jsonchema inferred from the script signature, and can be customized further as standalone or embedded into rich UIs using the App builder.

Auto-generated UIs
Windmill creates auto-generated user interfaces for scripts and flows based on their parameters.
Generated UI
main function's arguments can be given advanced settings that will affect the inputs' auto-generated UI and JSON Schema.

In addition to the UI, sync and async webhooks are generated for each deployment.

Webhooks
Trigger scripts and flows from webhooks.

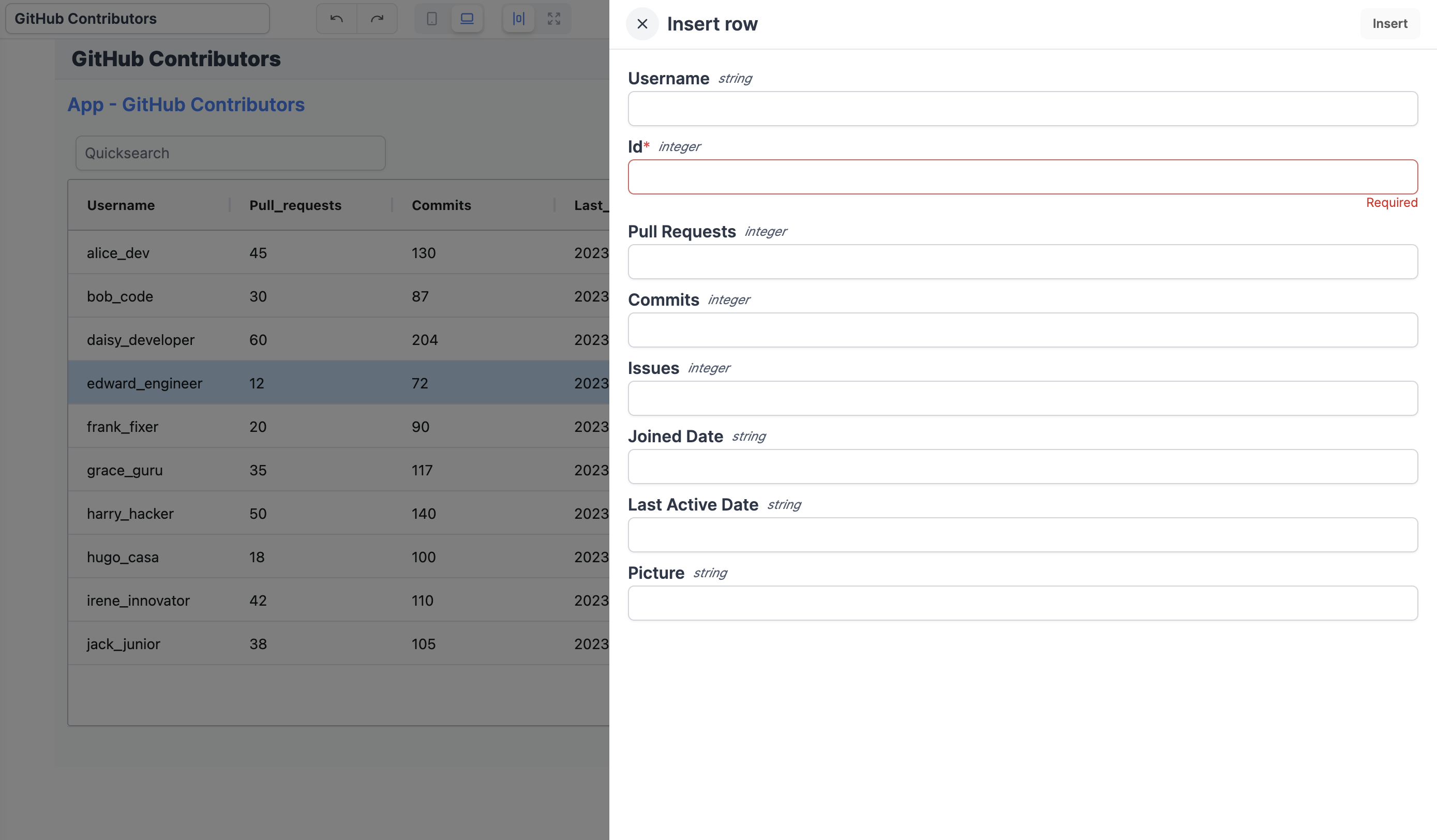

Database studio​

From Windmill App editor, you can also use the Database studio component to visualize and manage your databases (PostgreSQL / MySQL / MS SQL / Snowflake / BigQuery are all supported).

Database studio


The Database studio component allows you to:

  • Display the content of a table.
  • Edit the content of a table by directly editing the cells (only when the cell is editable).
  • Add a new row.
  • Delete a row.

All details at:

Database studio
The Database studio is a web-based database management tool that leverages Ag Grid for table display and interaction

Streaming large query results to S3 (Enterprise feature)​

Sometimes, your SQL script will return too much data which exceeds the 10 000 rows query limit within Windmill. In this case, you will want to use the s3 flag to stream your query result to a file.

SQL to S3 streaming
Stream an SQL query large result to a workspace storage file
